Mid-Hinged Poles

Mid-Hinged Street Light Poles

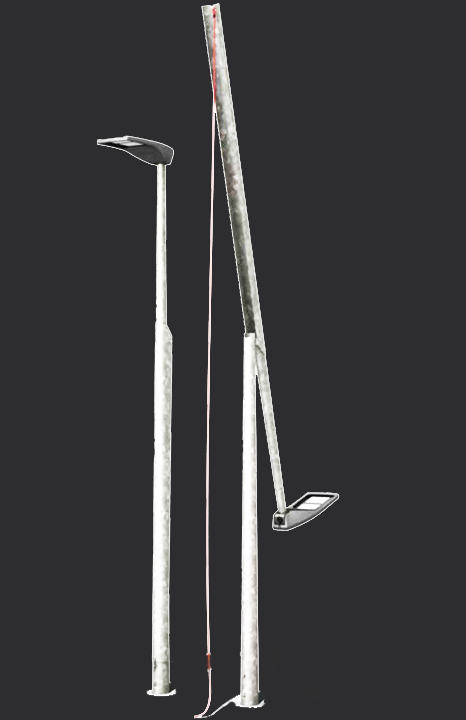

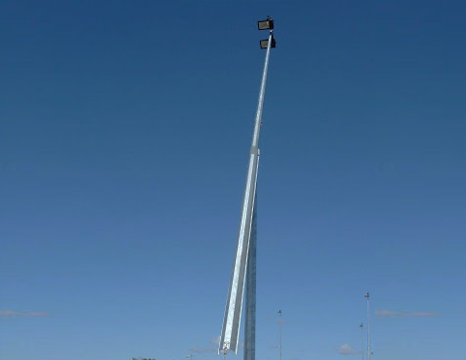

Our mid-hanging poles will boost the restoration and removal of light globes and the lamps in an imaginative manner, which involves cutting-edge poles. Through integrating a section-style system, which swing these poles from an articulation down, the poles mean that our clients do not need to restore, operate or replace globes or support equipment with expenses hydraulic lifting devices, such as the cherry pickers. Good for limited entry and high pole conditions.

This remove the need for an expanded work area, a cherry picker and protective climb devices, which reduces the continuing costs for poles. The Pole's basic mechanical lowering system will work one or two person, and lighting and protection, communication and other equipment can be operated safely and efficiently.
All mid-hinge poles in varying heights are made to UAE style regulations. ORBIX also provides operators' training to provide extensive customer support so that potential consumers can know how to effectively and correctly operate the hinge system. To learn more about the benefits of the intermediate tip, please contact ORBIX International team today for more information.
Easy but efficient options for retaining access include intermediate lighting masts that remove the need for ladders or higher work platforms for activities such as changing lamps.

Specifications

  • SHAFT
  • MATERIAL: EN S355J0
  • TENSILE STRENGTH: 470 MPa
  • BASE PLATE
  • MATERIAL: JIS G3101 SS400
  • TENSILE STRENGTH: 400 MPa

Dimensions

  • Pole Height: 3 Meter - 10 Meter
  • Base Plate Thickness(mm): 10-30
  • Base Dimension(mm): 200X200-500X500
  • Top Diameter(mm): 60-120
  • Bottom Diameter(mm): 140-300
  • Cutout Dimension(mm): 100X250-200X600

Pole Finish

  • HOT DIP GALVANIZING
  • ASTM A123 and A385
  • POWDER COATING
  • EPOXY AND EPOXY POLYESTER COATING
  • PAINT FINISH
  • DUPLEX COATING (ALL SOLID COLORS)
