Octagonal Poles

Octagonal Street Light Poles


ORBIX International is renowned throughout the nation for providing and manufacturing octagonal lighting poles. We have safely lightened private home, industrial and business zones, one the leading producers of octagonal luminous poles in UAE. We design octagonal street lighting poles with an extending arm according to customer requirements in single or double arrangements. Octagonal poles will have individual brackets, banner arms, door placement and other consumer specifications.
ORBIX International work in a large range of Octagonal Poles, mainly for use as street lamps. This commodity is produced under the guidance of highly qualified staff through the use of high-class content provided by reputable industry experts.

The Galvanized Octagonal Poles offered are known for their elegant appearance and sleek style. Such poles are usually used for cables and lighting construction. Built from steel and iron, the supplied poles ensure protection in open spaces, such as sidewalks, narrow paths, parks, highways, etc. Our poles are made of iron and steel in various sizes and colors. The Galvanized Octagonal Poles given are designed to satisfy our customers' requirements. ORBIX's sequence of tapered octagonal poles excels at handling severe winds and other environmental hazards, especially for a stable base for several lighting devices. Our octagonal poles are available in custom heights to ensure improved stability and continuous illumination independent of their height. Fit for sport, industry, industrial and other applications. Call us today to hear more about the advantages of our octagonal poles.

Specifications

  • SHAFT
  • MATERIAL: EN S355J0
  • TENSILE STRENGTH: 470 MPa

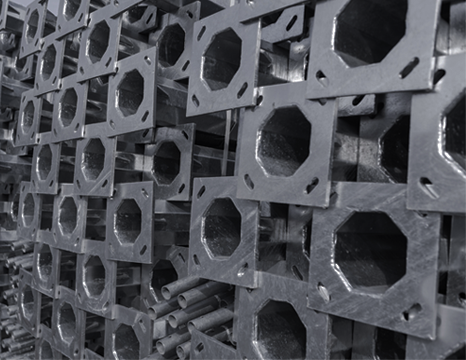

  • BASE PLATE
  • MATERIAL: JIS G3101 SS400
  • TENSILE STRENGTH: 400 MPa

Dimensions

  • Pole Height: 4 Meter - 10 Meter
  • Base Plate Thickness(mm): 10-30
  • Base Dimension(mm): 200X200-500X500
  • Top Diameter(mm): 60-120
  • Bottom Diameter(mm): 140-300
  • Cutout Dimension(mm): 100X250-200X600

Pole Finish

  • HOT DIP GALVANIZING
  • ASTM A123 and A385
  • POWDER COATING
  • EPOXY AND EPOXY POLYESTER COATING
  • PAINT FINISH
  • DUPLEX COATING (ALL SOLID COLORS)
